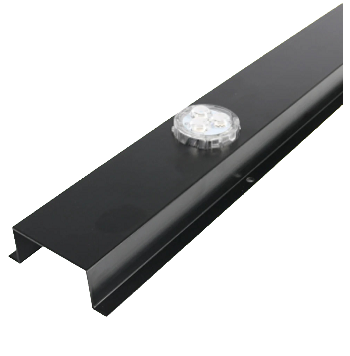

StealthPro™ GS-30

Designed for Architectural Precision

The StealthPro GS-30™ is the ideal solution when controlled downlighting, flexibility, and a clean architectural finish matter most — offering professionals a powerful alternative to bulky or visually intrusive systems.

Why StealthPro™ GS-30

  • Optimized for Downward-Facing Soffit Mounting – Ideal for architectural wash and accent lighting
  • 30 mm Low-Profile Round Module – Clean, minimal appearance
  • Converging Optical Lenses – Focused, controlled light output with reduced glare
  • RGB + Dedicated Warm & Pure White (RGB+WW) – True white light and vibrant colour
  • Spectra Blend Technology™ – Perfect colour blending with smooth transitions
  • Track or Direct-Mount Installation – Maximum flexibility for installers
  • CSA Certified – Approved to Canadian safety standards

StealthPro™ GS-30 RGB+WW Light Module – Specifications

Quick Specs
  • Color Output: RGB + Dedicated Warm White + Pure White (RGB+WW)
  • Optics: Individual Converging Lenses per LED
  • LED Type: 3 × High-Efficiency 5050 LEDs per module
  • Form Factor: Round Pixel Module
  • Diameter: 30 mm
  • Voltage: 24 VDC
  • Brightness: High-output, high-efficiency SMD design
  • Pixel Spacing: 1 module per foot (30 cm)
  • Available Lengths: 1 ft, 5 ft, 10 ft
  • Control: Pixel-level control compatible with StealthPro™ controllers
  • Certification: CSA Approved
  • Model: STEALTH-PRO GS-30
  • Rating: Commercial Grade
  • Power Consumption:
  • RGB / WW: 0.72 W
  • Pure White (RGB+WW): 1.2 W
  • Input Voltage: 24 VDC
  • IP Rating: IP65
  • Operating Temperature: -40 °C to +60 °C
  • Dimensions: 30mm x 1.3mm
  • Connection Type: LLT Twist-Lock (Waterproof)
  • Wire Gauge: 18 AWG
  • Lens: Optical-Grade Polycarbonate
  • UV Protection: Yes
  • Fire Rating: UL 94 V-0
  • Permanent outdoor roofline lighting
  • Architectural accent lighting
  • Residential & commercial installations
  • Indoor & outdoor use
  • Ideal for wet, damp, warm, and cold environments
