StealthPro Ultra™

Designed for Seamless Integration

The StealthPro Ultra™ is the ideal solution when a low-profile, front-facing installation and a clean, nearly invisible daytime appearance matter most — delivering powerful architectural lighting without compromising the lines of the home.

Why StealthPro Ultra™

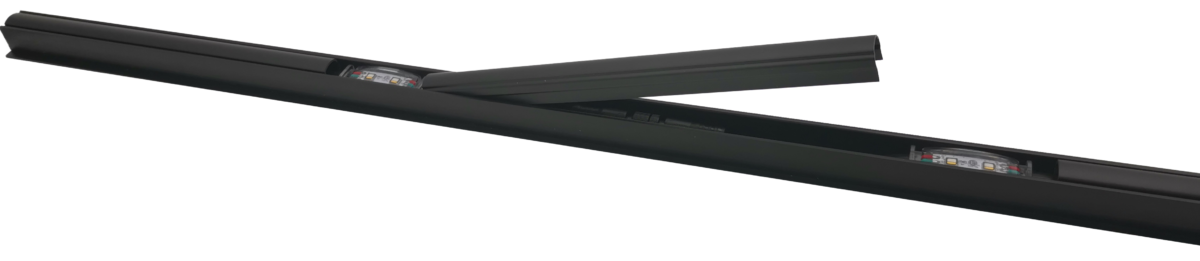

  • Ultra-Slim 1″ Track Design – Clean, inconspicuous appearance for front-facing installations
  • RGB + Dedicated Warm & Pure White (RGB+WW) – True architectural white light and vibrant colour
  • Spectra Blend Technology™ – Perfectly blended colours with smooth transitions and uniform output
  • Commercial-Grade Construction – Built for permanent, year-round outdoor use
  • Designed for Cold Weather – Flexible, durable materials that install easily even in winter
  • CSA Certified – All components approved to Canadian safety standards

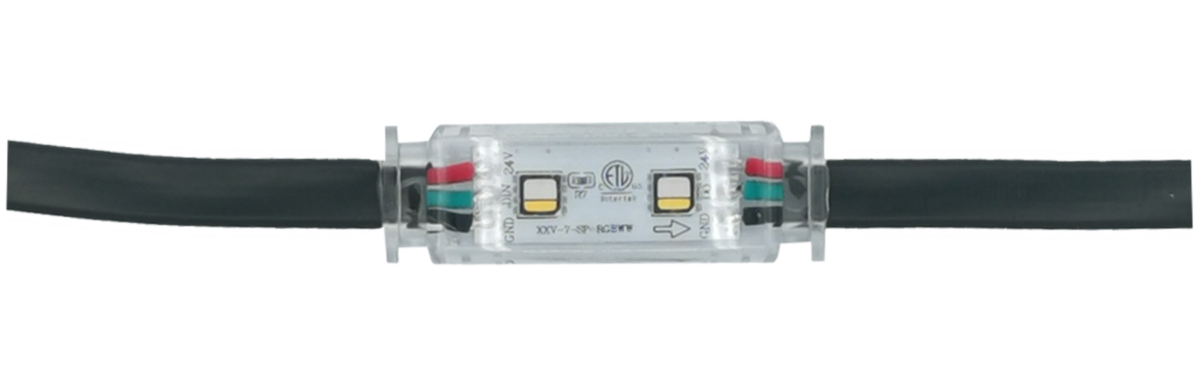

StealthPro Ultra™ RGB+WW Light Module – Specifications

Quick Specs
  • Color Output: RGB + Dedicated Warm White + Pure White (RGB+WW)
  • LED Type: 2 × High-Efficiency 5050 LEDs per module
  • Voltage: 24 VDC
  • Brightness: High-output, high-efficiency SMD design
  • Pixel Spacing: 1 module per foot (30 cm)
  • Available Lengths: 1 ft, 5 ft, 10 ft
  • Control: Pixel-level control compatible with StealthPro™ controllers
  • Certification: CSA Approved
  • Model: STEALTH-PRO ULTRA
  • Rating: Commercial Grade
  • Power Consumption:
  • RGB / WW: 0.36 W
  • Pure White (RGB+WW): 0.72 W
  • Input Voltage: 24 VDC
  • IP Rating: IP65
  • Operating Temperature: -40 °C to +60 °C
  • Dimensions: 52 × 17 × 14 mm (2.0″ × 0.67″ × 0.55″)
  • Connection Type: LLT Twist-Lock (Waterproof)
  • Wire Gauge: 18 AWG
  • Lens: Optical-Grade Polycarbonate
  • UV Protection: Yes
  • Fire Rating: UL 94 V-0
  • Permanent outdoor roofline lighting
  • Architectural accent lighting
  • Residential & commercial installations
  • Indoor & outdoor use
  • Ideal for wet, damp, warm, and cold environments
